Vintage 1968 Grundig Musikgerät RF116 Given a 21st-Century Second Life with ESP32 Modernization

While single-board computers and microcontrollers are most frequently celebrated for powering cutting-edge, experimental, and futuristic DIY inventions, they are increasingly finding a second calling as powerful tools for hardware preservation. Rather than letting obsolete electronics fade into obscurity or end up as electronic waste when their internal components fail, clever makers are using modern tech to bridge the gap between decades past and the modern smart home. A prime example of this trend has recently emerged from the maker community, where a classic 1968 Grundig Musikgerät RF116 radio has been thoughtfully modernized using an ESP32 microcontroller setup, successfully bringing mid-century audio engineering into the modern era without compromising its timeless aesthetic.

The impressive project was brought to light by a maker and enthusiast known online as SramAtlov, who shared the inner workings and final results of the build with the tech community on the ESP32 subreddit. The vintage radio, which originally served as a staple of home entertainment in the late 1960s, had presumably ceased functioning in its original capacity due to age, wear, or component failure. Instead of allowing the handsome wooden chassis and iconic analog interface to collect dust or face the landfill, the creator took it upon themselves to completely overhaul its internal architecture. By integrating modern components into the vintage frame, SramAtlov managed to preserve a stunning piece of mid-century industrial design while equipping it with fully functional, modern wireless streaming capabilities.

According to details shared by the creator, the restoration process required a complete decoupling of the unit’s legacy electrical systems. The original electronics have been entirely powered down and disconnected, ensuring that the fragile vintage circuitry is safely bypassed. In place of the vacuum tubes and analog tuners that once powered the device, the modernized Grundig now relies on a specialized platform known as Louder-ESP32. This hardware foundation runs ESPHome, allowing the vintage unit to seamlessly integrate with a modern Music Assistant server. Audio is projected cleanly through the original Grundig speakers, ensuring that the sound profile retains a rich, warm resonance that complements the acoustic design of the cabinet.

What makes this particular restoration stand out among retro-fitting projects is the meticulous attention paid to preserving the physical user experience. Modernizing an old device often introduces the temptation to strip away physical controls in favor of purely software-driven or smartphone-based interfaces, but SramAtlov went to great lengths to ensure that the physical buttons and dials of the 1968 radio remain the primary way to interact with the device. To achieve this, a separate ESP32-S3 microcontroller was dedicated entirely to managing the physical inputs, translating the movement of decades-old switches and rotary knobs into digital commands that control the modern audio playback system.

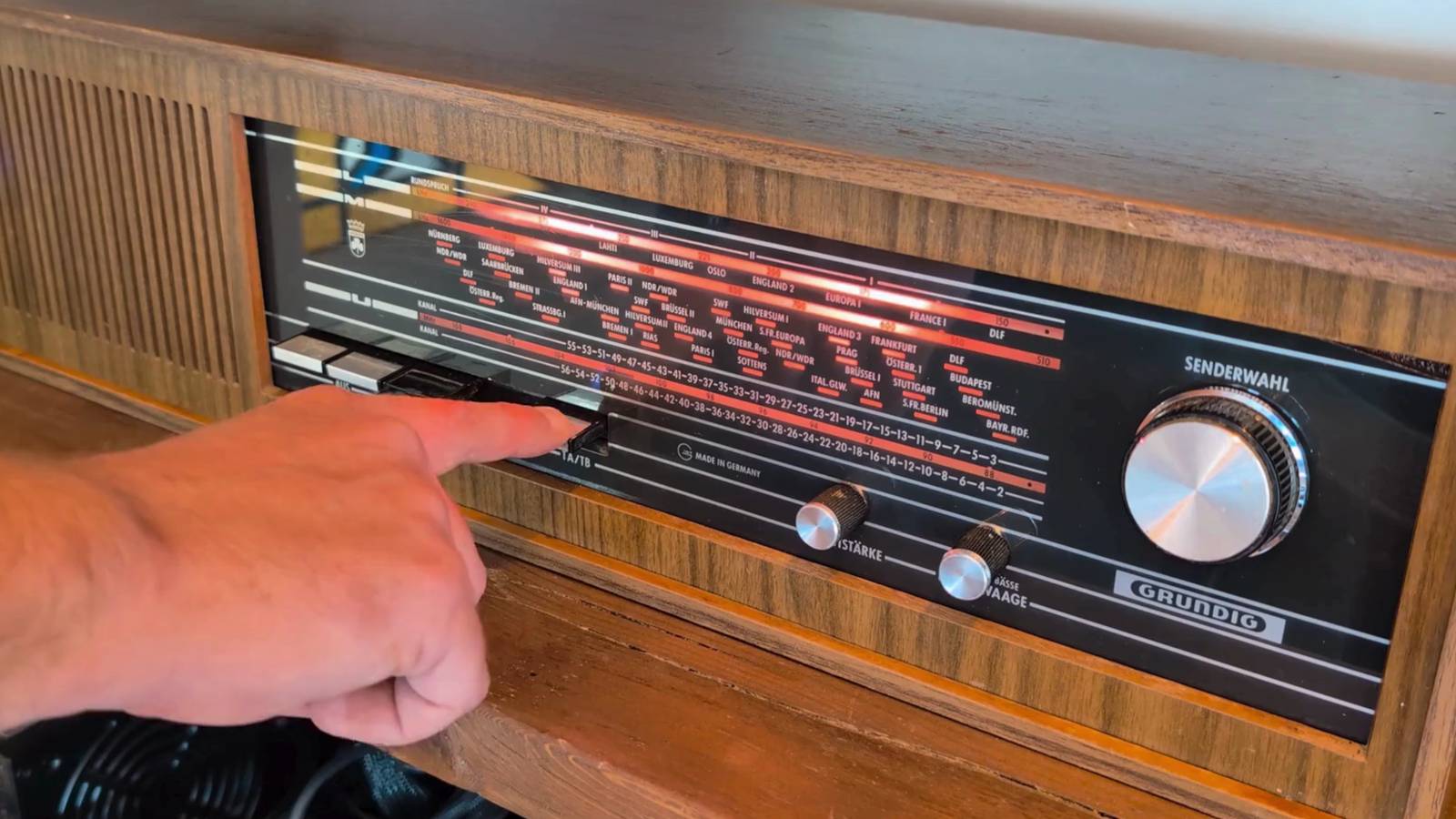

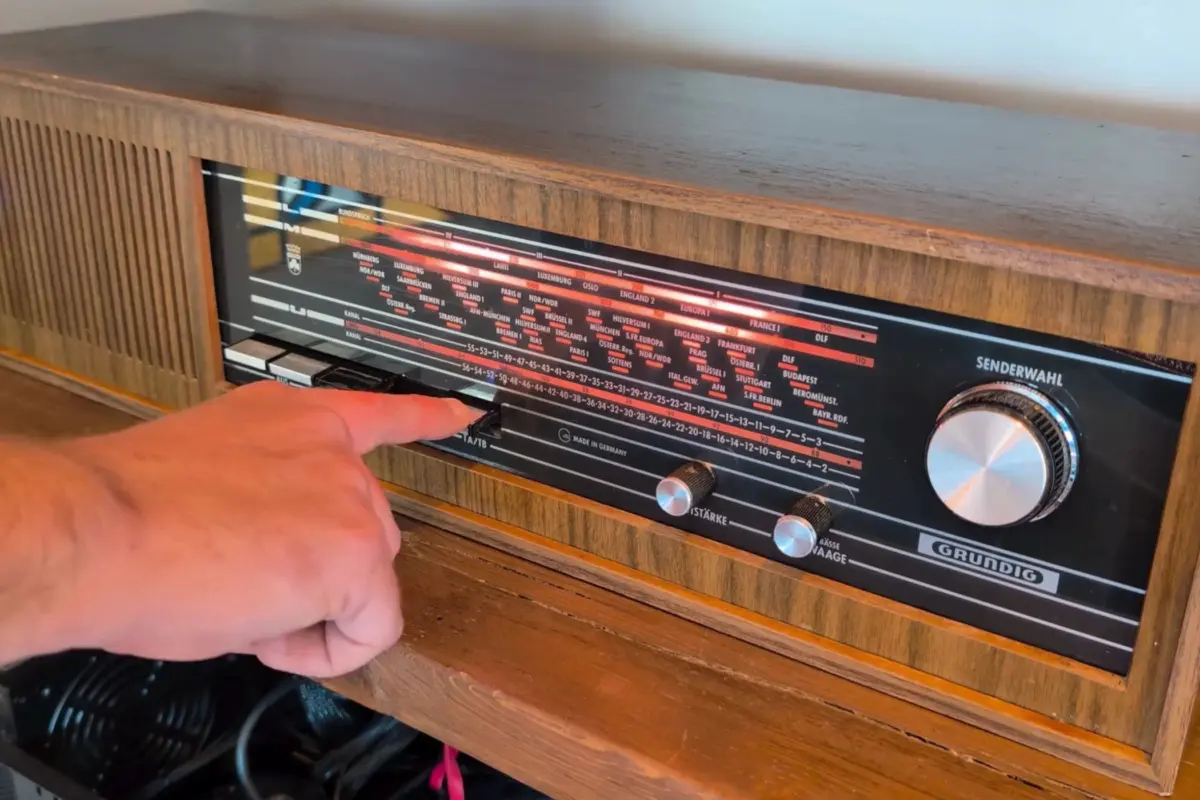

The front panel of the radio features five distinct switches, all of which have been wired to perform specific functions within the modernized setup. Four of these classic push-buttons are configured to instantly swap between different curated playlists, allowing the user to jump across musical moods with a satisfying mechanical click. The fifth switch acts as a dedicated power or mute toggle, cutting the audio instantly when desired. Meanwhile, the three original rotary dials on the front of the enclosure have been fully mapped to essential playback parameters. One dial controls the master volume, another adjusts the equalizer settings to fine-tune the sound, and the third functions as a track selector to skip through songs within the current playlist.

Aesthetic preservation was another major priority for the project, extending even to the subtle lighting elements that give mid-century audio gear its distinct character. The creator managed to ingeniously squeeze a string of WS2812B individually addressable pixels into the original lamp housing behind the radio’s dial face. This clever addition preserves the iconic backlit glow that originally illuminated the station markers in the 1960s, replicating the warm ambiance of the vacuum-tube era while utilizing modern, energy-efficient programmable LEDs.

While purists occasionally argue that antique hardware should be strictly maintained using period-accurate replacement parts, the reality of vintage electronics maintenance is often far more complex. Over the decades, original components frequently go out of production, and sourcing functional, decades-old replacement parts can become economically unfeasible or outright impossible. When core electronics fail permanently, enthusiasts are often left with a difficult choice between preserving a shell as a static display piece or giving it a modern internal makeover. Projects like SramAtlov’s modernized Grundig Musikgerät RF116 demonstrate that technology recycling can offer a compelling middle ground, transforming a broken relic into a daily-use conversation piece that bridges two entirely different eras of audio technology.
