Navigating the Complexities, Risks, and Innovations of High-Voltage Multipliers

There are several ways to boost a relatively low voltage by a factor of two or three, or even hundreds—but there are also many risks involved in the process. While basic voltage booster configurations can elevate inputs to a certain degree, they quickly hit performance ceilings. To push voltages into much higher values, engineers turn to specialized circuits known as voltage multipliers. The design considerations, component selection, and safety protocols change dramatically when an output voltage crosses the 100-volt threshold and climbs well past the 1,000-volt range.

Fortunately, many of these high-voltage systems require only modest current—typically 100 milliamps or less—which simplifies the engineering challenge to some extent. Modern applications for these truly high voltages are far more common than many people realize, extending across a wide range of industries and scientific fields. They are critical components in X-ray machines, advanced physics experiments, particle accelerator injectors, beam steering apparatuses, electric-field shaping systems, lightning simulation equipment, and electrostatic testing platforms.

The most obvious question for anyone encountering power conversion is why designers cannot simply use a transformer with a suitable turns ratio to multiply an input voltage by a factor of 10, 1,000, or whatever value is required. In theory, such an approach is entirely possible. However, as the turns ratio and secondary voltage increase, a host of practical problems emerge. These include additional inefficiency driven by transformer core and copper losses, as well as the severe risk of high-voltage breakdown in the wire insulation. While this approach is not entirely impossible, it becomes increasingly difficult to implement as output demands scale upward.

This transformer-based approach has nonetheless been used commercially in many high-voltage applications through a configuration known as a flyback converter. Most notably, flyback designs powered the cathode-ray tubes (CRTs) in the mass-market televisions that dominated the consumer video landscape for over half a century before being replaced by LED and LCD flat-panel displays. The flyback design relies on a specialized transformer wound to function as a combination of a traditional transformer and an energy-storing inductor.

When higher multiplication factors are needed without massive transformers, engineers utilize passive topologies. These circuits rely on a combination of diodes and capacitors arranged in a series of stages to leverage and compound the voltage from the preceding stage. These voltage multipliers are specialized rectifier circuits designed to produce an output voltage that is, in theory, an integer multiple of the alternating current peak input value—such as two, three, or four times the AC peak. They are typically configured as a stack of half-wave or full-wave rectifiers.

In a basic three-stage multiplier configuration, each cycle of the AC input charges the various capacitors, with each capacitor eventually reaching the peak value of the input sine wave through successive cycles. For instance, with a standard 120-volt AC root-mean-square line voltage, the peak value reaches approximately 170 volts. By distributing this across multiple capacitors that charge independently and then stacking them in series, the final output voltage becomes the sum of the individual capacitor voltages.

This arrangement achieves voltage multiplication without any tangible or visible mechanical switching, transitioning smoothly from charging to voltage-stacking within a standard rectifier layout. The diodes function as passive switches, preventing the discharge of the capacitors when the input voltage begins to drop. They permit current to flow into the capacitors while blocking any return flow back to the input source. Furthermore, if a negative high voltage is required from a multiplier, the process is remarkably straightforward: engineers simply reverse the polarities of all the diodes and capacitors within the multiplier chain.

Despite their conceptual simplicity, multiplier configurations are notoriously difficult to implement in practice. First, the diodes and capacitors must possess a minimum reverse-breakdown voltage rating of at least twice the peak voltage experienced across them. Even when starting from a relatively modest 120-volt AC line with a 170-volt peak, building a tenfold multiplier requires components rated for at least 1,700 volts, alongside an additional safety margin factor of two or more.

Designing for high voltages introduces numerous physical phenomena where conventional circuit rules no longer apply in a linear fashion. Engineers often compare scaling up voltage to crossing phase-change thresholds in thermodynamics, such as water freezing or boiling. High-voltage circuits are prone to corona discharges escaping from sharp points. These luminous discharges are hazardous in their own right, and they progressively pit metal contacts while punching through standard insulating materials.

Even seemingly minor construction details, such as standard solder joints, present significant challenges in high-voltage environments. While a standard, well-made solder joint is entirely adequate for low-voltage electronics, it will act as an initiation point for corona discharge in a high-voltage system. To combat this, assembly technicians frequently employ "ball soldering," creating large, smooth, spherical solder connections. The broad diameter and smooth geometry of these spherical joints help control the local electric field, effectively suppressing the generation of corona.

For those tempted to experiment with building custom high-voltage circuits, industry professionals issue a strong warning. Designing these systems involves far more than simply following a schematic diagram or ordering a bill of materials, especially since the required components are often specialized and unique.

Operating in the high-voltage realm is inherently dangerous, where exercising ordinary caution is insufficient and even the slightest oversight can lead to severe injury or fatal consequences. Physical spacing, component ratings, insulation properties, microscopic pinhole imperfections, and material breakdown represent only a fraction of the variables that must be managed. Circuit protection mechanisms must also be carefully tailored, requiring specialty fuses and dedicated overvoltage and overcurrent protection devices.

Despite these steep risks, hobbyists and experimenters frequently attempt to build multipliers capable of reaching tens of kilovolts. Safety experts caution against attempting such projects without the supervision of an experienced high-voltage professional. Compounding the physical risks are complex regulatory hurdles that manufacturers must clear if they intend to produce and commercialize high-voltage products.

Notwithstanding the inherent dangers, high-voltage multipliers enable remarkable engineering feats across cutting-edge research and development. A prominent example includes an experimental aircraft developed and tested by a research team at the Massachusetts Institute of Technology. The aircraft features a wingspan of a few meters and operates entirely without moving parts. Instead, it relies on an ionic wind generated by the flow of negative ions attracted toward a high-voltage positive electrostatic field established across a wire "fence" running along the trailing edge of the wing.

This free-flying, untethered aircraft carries an on-board battery delivering a nominal 200 volts direct current to power its 600-watt power supply, which was designed by the Power Electronics Research Group in MIT’s Research Laboratory of Electronics. The onboard power subsystem utilizes a switching regulator followed by a 1-to-15 step-up transformer and a six-stage, full-wave Cockcroft-Walton voltage multiplier topology to deliver a steady 20 kilovolts of direct current.

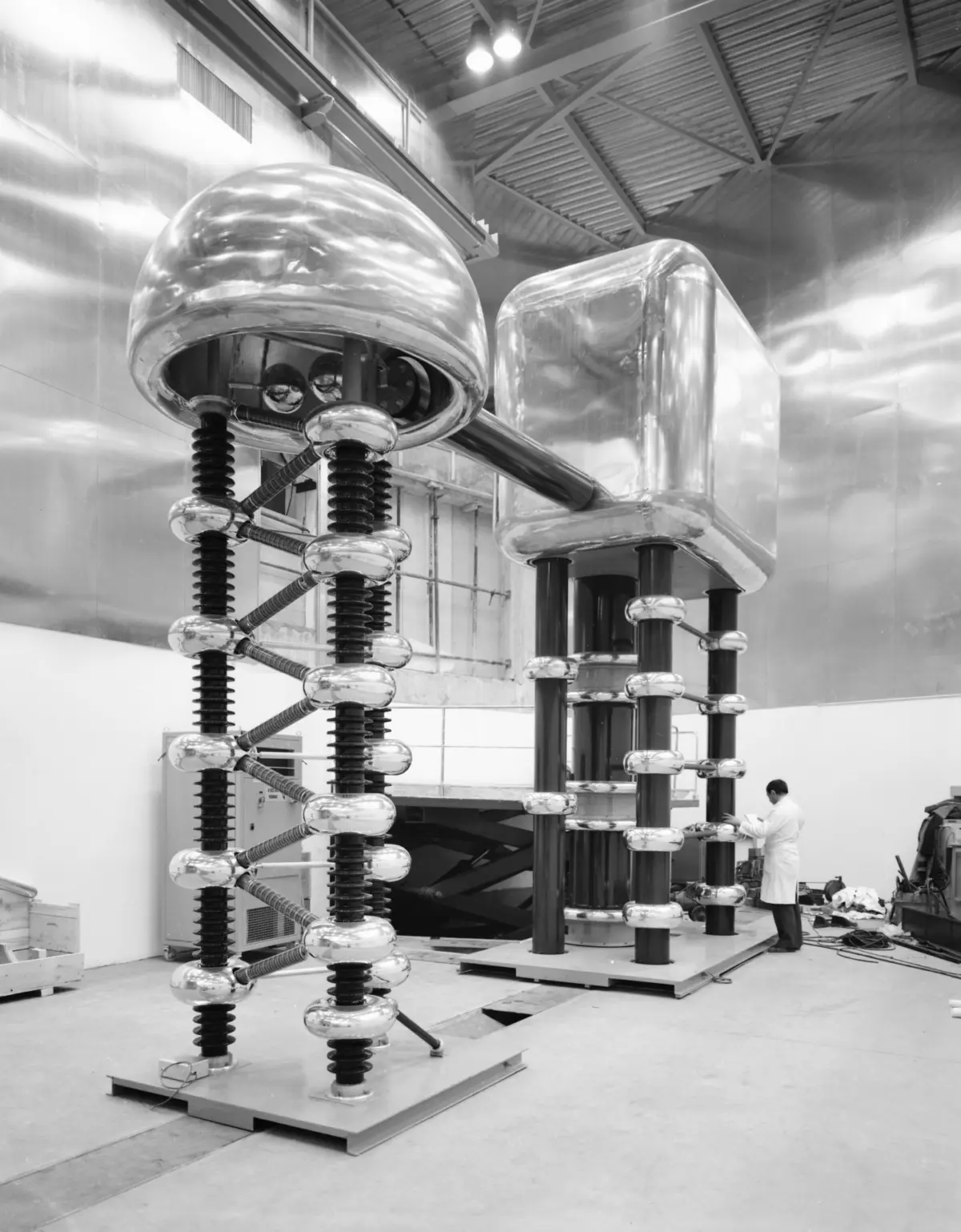

Cockcroft-Walton multipliers have long played a foundational role in advanced physics research, frequently serving as the initial voltage injectors for various particle accelerators. A notable historical example is a 750-kilovolt unit commissioned at CERN in 1975, which remained operational for decades before its recent retirement. Modern iterations of these generators have evolved to achieve output levels reaching well into the single-digit megavolt range.

The specialized world of high-voltage boosters and multipliers remains both fascinating and essential to modern technology. While some configurations achieve modestly elevated voltages, others push boundaries deep into the kilovolt and megavolt domains. As operational voltages climb beyond the 60-volt threshold, basic safety concerns emerge; once designs enter the realm of hundreds and thousands of volts, unique material behaviors and electrical phenomena dictate that high-voltage engineering operates under an entirely different set of physical laws.
