Simplifying Automotive Sensor Power Supplies: A Novel Approach Eliminates DC-DC Converters and Integrates Short-Circuit Protection

Designing an automotive sensor power supply often appears deceptively simple on paper, yet it presents a series of formidable challenges for hardware and embedded systems engineers. At the core of the challenge is the requirement for a regulated output voltage of 5V or 3.3V, which must precisely match the logic bus voltage dictated by the central processing unit or microcontroller. While a simple low-dropout linear regulator might seem like an obvious choice, it can dissipate a considerable amount of power across its terminals, even when managing a modest sensor load of just a few tens of milliamperes.

Traditionally, the engineering approach to this problem relies on a DC-DC converter capable of stepping down the vehicle’s primary electrical environment to provide a pre-regulated supply bus of approximately 6.5V. Furthermore, designers must ensure that the output is robustly protected against severe fault conditions, including accidental short-circuits to both ground and the high-voltage battery bus. Consequently, conventional automotive sensor supply solutions typically depend on a complex architecture featuring a three-terminal regulator integrated circuit preceded by a dedicated switching pre-regulator to handle the thermal load and voltage differential.

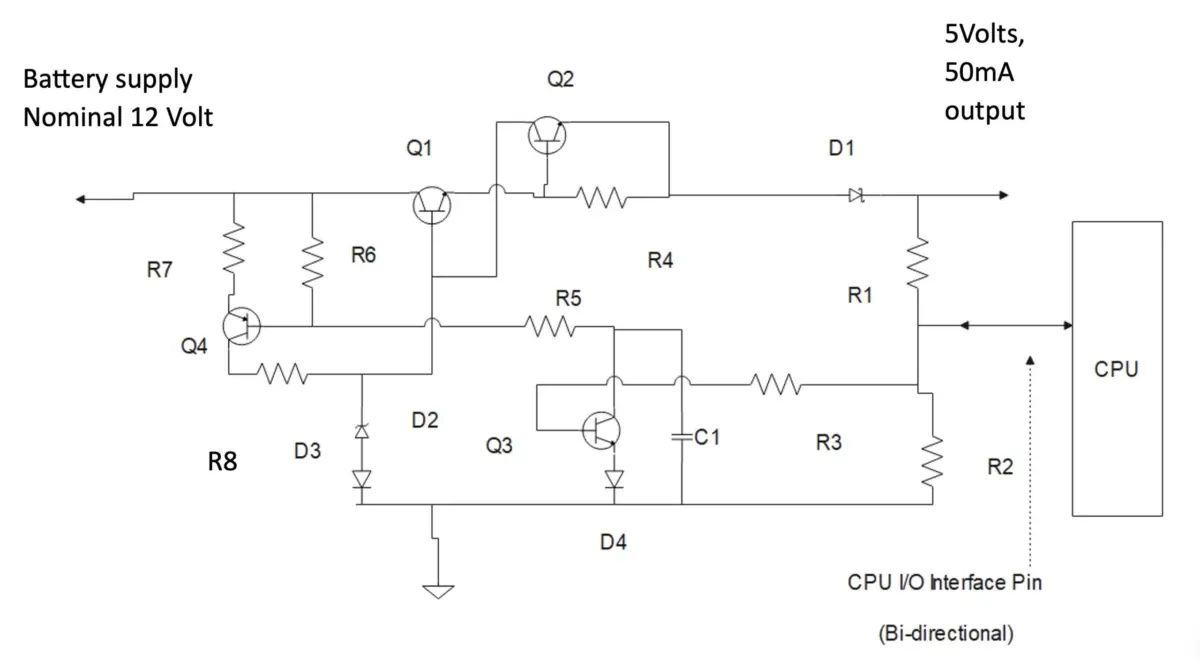

A clever circuit showcased in a recent Design Idea by engineering consultant Vishwas Vaidya challenges this traditional complexity by completely eliminating the DC-DC converter. Instead, the innovative design incorporates a built-in, cost-effective short-circuit trip mechanism that relies entirely on a transistor linear regulator. This approach significantly streamlines the hardware bill of materials while maintaining high reliability and safety standards required for modern automotive environments.

In this streamlined architecture, a single CPU pin interfaces directly with the sensor supply output circuit, fulfilling a vital dual role within the system. By utilizing the flexibility of the microcontroller, the series pass transistor can be turned off entirely to conserve power when analog input sensing is not actively required. This system-level design countermeasure effectively eliminates the need for a switching pre-regulator, as the continuous power dissipation across the series pass transistor is largely avoided by keeping it inactive for the vast majority of its operational lifecycle.

A careful and methodical analysis of typical automotive sensor signal acquisition tasks reveals that most parameters do not require continuous monitoring. In many practical applications, a sensor signal only needs to be read for a brief duration of a few microseconds every one hundred milliseconds. For even slower-moving physical phenomena, such as ambient or component temperature, readings may only be necessary once every full second. Consequently, for more than ninety-nine percent of the total operational time, continuous sensor signal acquisition is entirely unnecessary. Engineers can therefore safely disable the sensor supply by simply turning off its series pass transistor during these prolonged idle periods.

As previously understood in power management design, a series pass low-dropout regulator is traditionally responsible for heavy power dissipation if it remains continuously powered directly from the vehicle battery, as it must constantly drop a large voltage differential. However, by cleverly keeping the regulator turned off for the vast majority of the time, the system no longer requires expensive or bulky DC-DC pre-regulation simply to conserve power. The thermal load is naturally managed through duty-cycle control rather than continuous hardware conversion.

This architectural philosophy forms the foundation of the proposed sensor supply scheme, though actual component values must always be tailored to fit the constraints of specific end-use applications. For higher-voltage automotive battery buses, such as 24V or 48V systems commonly found in commercial vehicles and modern mild-hybrid architectures, the resistor values and transistor selections must be suitably altered to meet elevated electrical and thermal requirements. Because the design aims to turn on the series pass element for approximately one millisecond out of every tenth of a second or longer, a power transistor featuring robust thermal capacitance may be required to ensure optimal thermal performance when operating across higher voltage buses.

Discerning hardware designers are expected to make appropriate adjustments to transistor ratings and resistor values without violating the core design philosophy, allowing the circuit to adapt seamlessly to diverse automotive scenarios, including heavy-duty 24V or 48V battery environments. Depending on the specific application scenario and available microcontroller resources, a designer may also choose to utilize a separate CPU output pin equipped with an extra dedicated NPN transistor across the secondary biasing network to control the primary switching element.

The creator of this architectural concept, Vishwas Vaidya, is a graduate of the prestigious Indian Institute of Technology in Delhi, India. He currently operates as an independent engineering consultant and industry faculty member specializing in embedded systems for global automotive clients and high-repute academic institutions. His research reports and design articles have frequently appeared in numerous worldwide engineering publications, contributing practical solutions to ongoing challenges in automotive hardware design.
